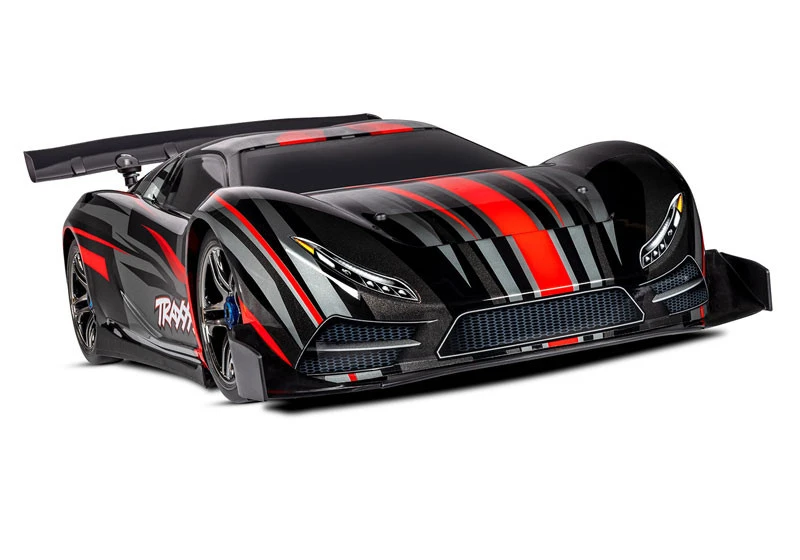

Traxxas XO-1 AWD 1/7 Scale RTR RC Supercar W/TSM & Wireless Module

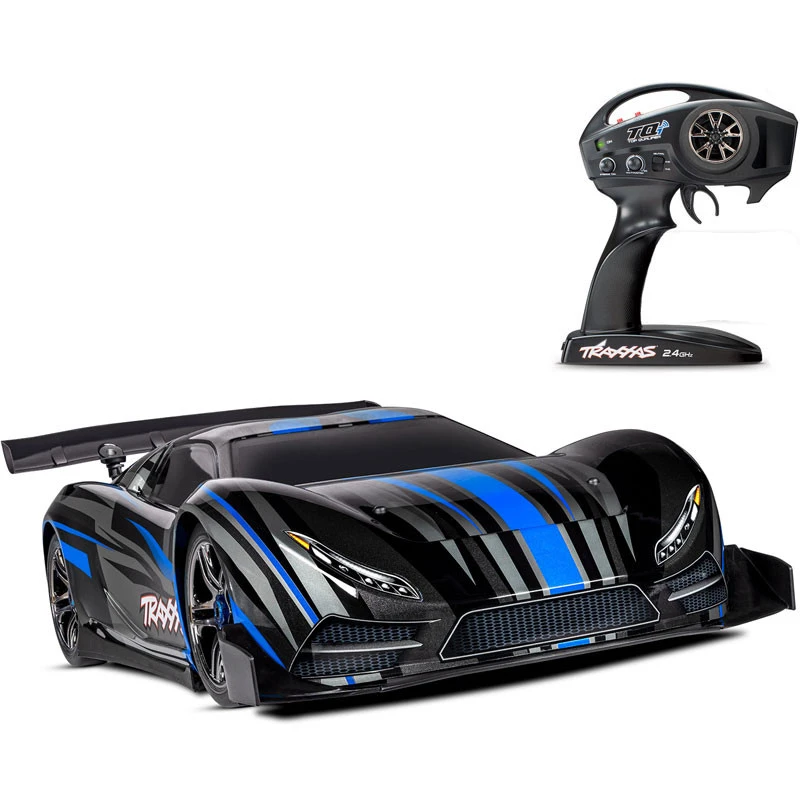

This is the Traxxas XO-1 AWD Ready-to-Run 1/7 Scale All-Wheel-Drive Supercar with the TQi 2.4GHz Radio System, Traxxas Stability Management, and Traxxas Link Wireless Module. The XO-1 comes equipped with the TQi radio system, factory-installed telemetry sensors, Castle Creations Mamba Monster Extreme ESC, Traxxas Big Block 1650 kV brushless motor, and ProGraphix painted body.

THE WORLD’S FASTEST READY-TO-RACE RC SUPERCAR
From a dead stop, 60mph flashes by in 2.3 seconds. Keep the throttle pegged and you’ll smash the 100mph barrier in 4.92 seconds. Simply put, XO-1 is the fastest and most outrageous Ready-to-Race RC car ever created. New aero improvements make XO-1 even easier to drive at the limit and more fun than ever before. If you’re looking for the most extreme RC thrill ride ever to hit the pavement, look no further than Traxxas, The Fastest Name in Radio Control

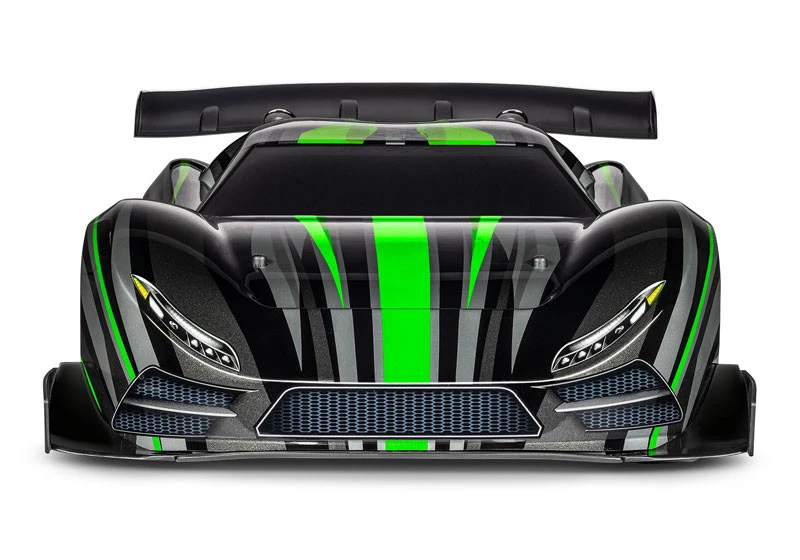

STABLE AERODYNAMICS
From top to bottom, XO-1 is a masterwork of intelligent aero design. The sculpted supercar body slices through the wind for record-breaking speed. New high-downforce canards on the front splitter and a revised rear wing provide superior high-speed stability. A high-tech NACA duct under the chassis routes cool air around the motor with a rear body vent for hot air to escape.

100+MPH TOP SPEED
The Traxxas XO-1 is a brutally fast hypercar intended for only the most experienced drivers. New aerodynamic improvements make XO-1’s performance more accessible than ever before with predictable straight-line performance and confidence-inspiring handling. Belted slick tires and a revised rear wing keep the XO-1 glued to the pavement whether you’re testing its top speed potential or carving up a tight race course.

BIG BLOCK POWER
XO-1’s legendary speed wouldn’t be possible without explosive power and XO-1 brings big-block 6s brushless horsepower to the table. Weighing almost two pounds, the massive Traxxas Big Block motor pumps out supercar speed and gut-wrenching torque for brutal acceleration. The finely-tuned Mamba Monster Extreme ESC delivers 25+ volts of ferocious power with scalpel-like precision.

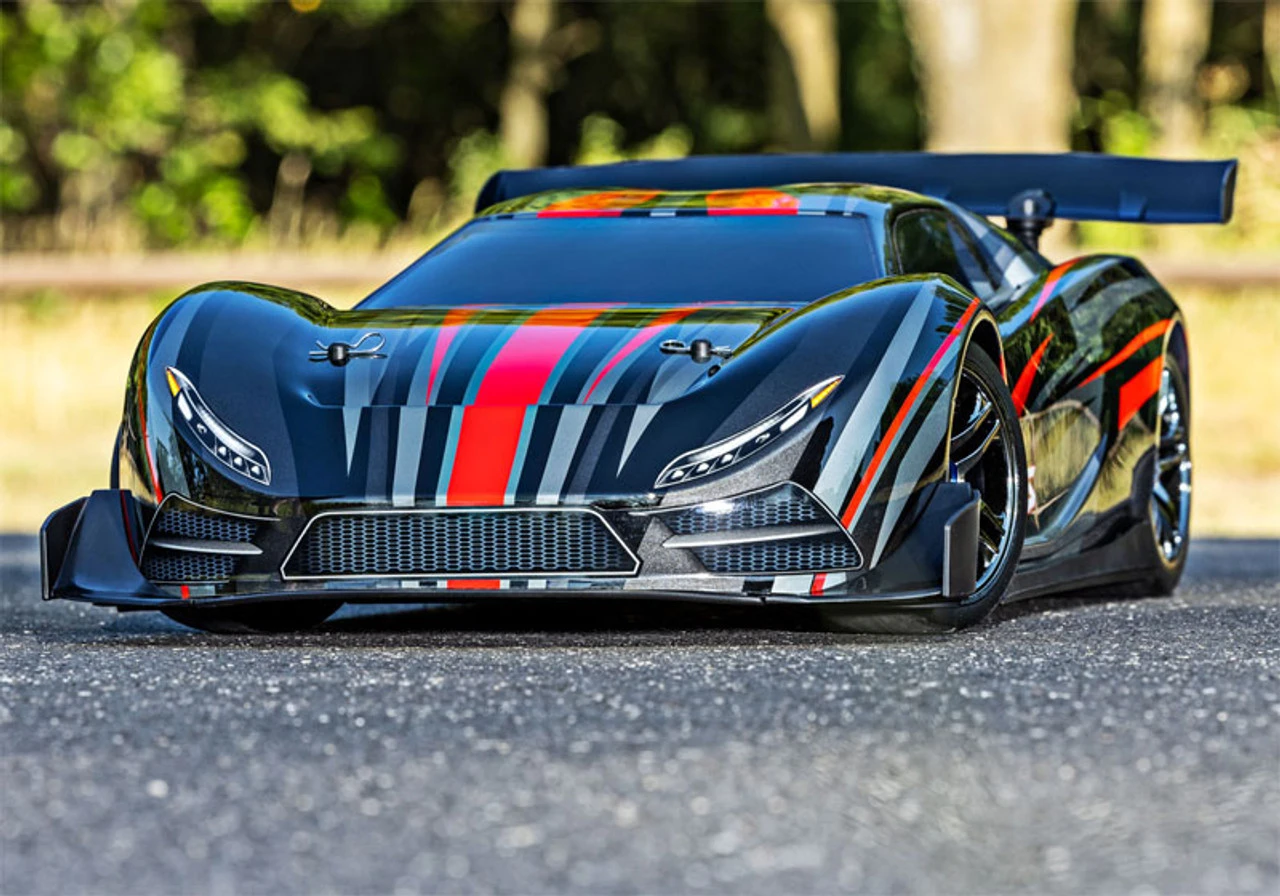

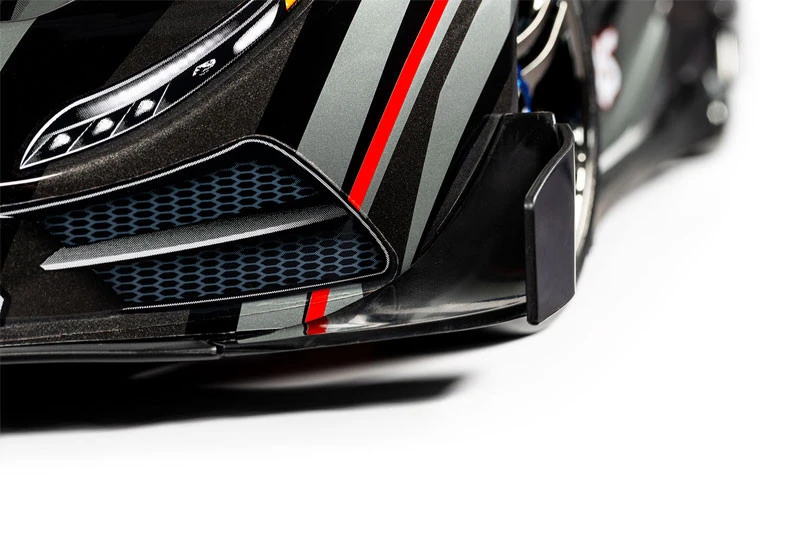

Computer Optimized Aerodynamics

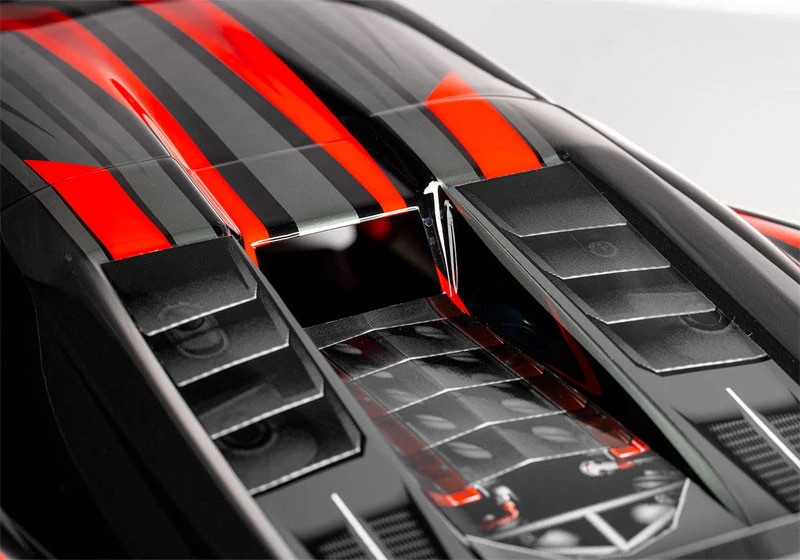

XO-1 sets the standard for high-performance RC air-management with its redesigned front splitter and high-downforce canards. Combined with the revised high-downforce rear wing, they strike the perfect balance between the front and rear for maximum stability in the critical 30-70 mph zone. A high-tech NACA duct supplies cool air to the motor with a new rear vent in the body to evacuate heat for peak efficiency.

Installed Real-Time Telemetry
XO-1 comes fully outfitted with pre-installed telemetry sensors to collect and record real-time telemetry data as you drive. Connect your mobile device and the Traxxas Link dashboard comes to life in vibrant color showing you speed, battery voltage, RPM, and temperature with fully-customized gauges.

Extruded Aluminum Driveshaft
XO-1’s extruded center driveshaft is both lightweight and incredibly strong. Internal splines fit securely onto the input shafts of the front and rear drive assemblies for slip-proof grip.

Mamba Monster Extreme Speed Control
Traxxas partnered with Castle Creations to develop the Mamba Monster Extreme speed control. From its integrated capacitor to the proprietary software created just for the XO-1, the Mamba Monster Extreme represents the state-of-the-art in big-volt power delivery.

Traxxas Big Block Brushless Motor
Weighing nearly two pounds, the Traxxas Big Block motor is the largest brushless motor ever fitted into a Ready-To-Race on-road car. The Big Block features a finned, heat-dissipating can, oversize premium bearings, and powerful sintered Neodymium magnets for massive acceleration and supercar performance.

Traxxas Stability Management
Traxxas Stability Management (TSM) works behind the scenes to keep the XO-1 arrow-straight during full-throttle acceleration and heavy braking. TSM allows you to drift your car controllably around a track, while helping to prevent spinouts and loss of control on slippery surfaces. Adjust the amount of assistance from off to 100% right from your transmitter.

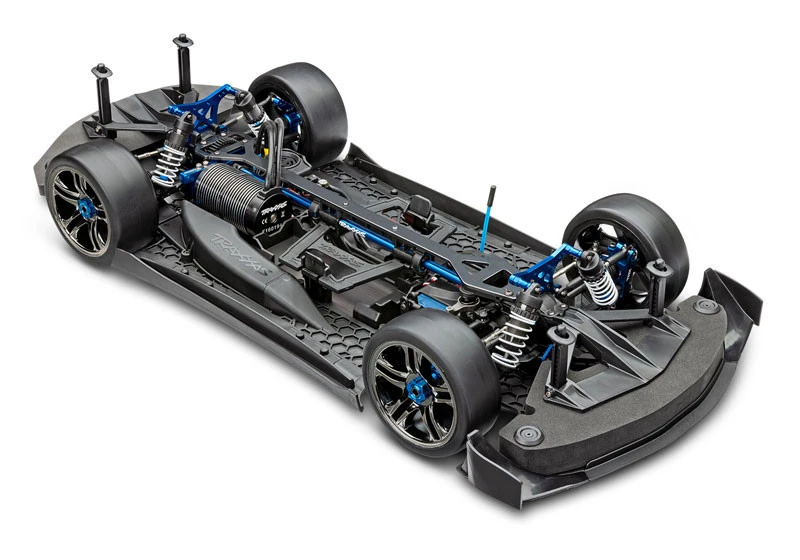

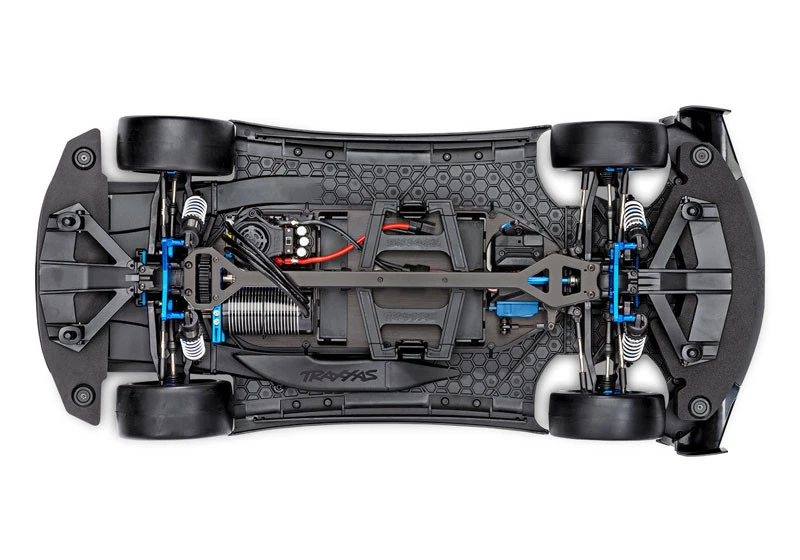

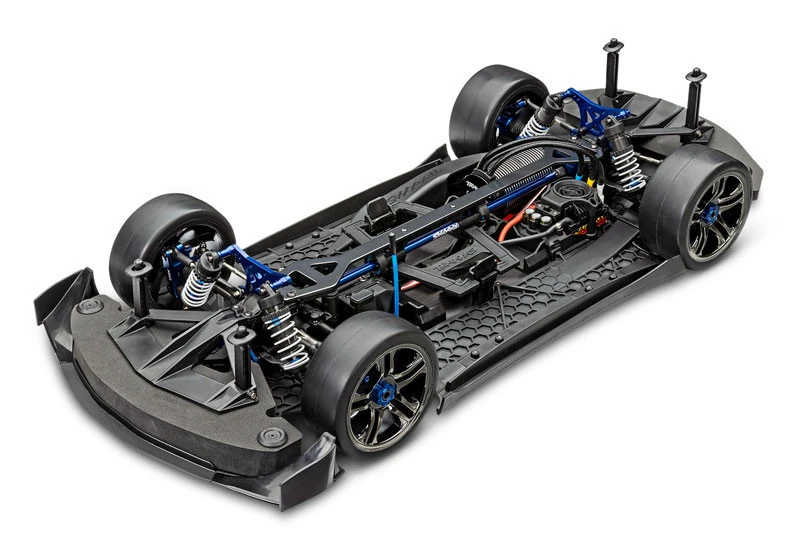

6061 Aluminum Chassis Core
Constructed of lightweight 6061 aluminum, XO-1’s lower chassis adds superior strength and doubles as a heat sink for the power system. The aluminum upper chassis provides significant torsional strength and keeps the bulkheads aligned with the driveshaft even at extreme RPM.

Speed-Rated Belted Tires
XO-1’s slick tires are the first to be rated 100+ mph. Zero-stretch belting reinforces the soft-compound rubber with foam inserts to support the tread. The tires come pre-glued to extra-wide black chrome Split-Spoke wheels for maximum traction.

FEATURES

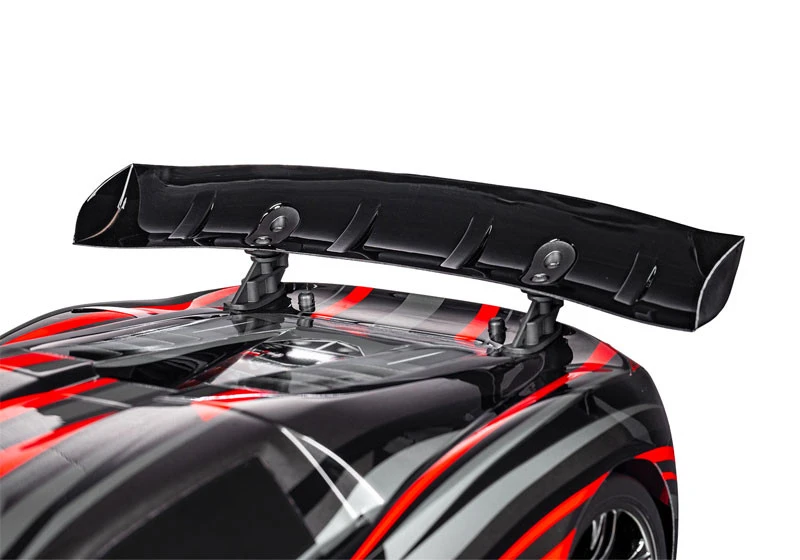

High-Downforce Wing
High-Downforce Splitter
Revised Front and Rear Bumpers
Machined Aluminum C-Hubs
Heavy-Duty Turnbuckles
Heavy-Duty Composite Arms
Aluminum GTR Shocks
Dual Bellcrank Steering with Servo Saver
Aluminum Steering Blocks
Digital High-Torque Waterproof Steering Servo
Multi-Channel Receiver with Fail-Safe Security
Waterproof Receiver Box
3mm Aluminum Chassis
Scalable Battery Compartment
Machined Aluminum Hub Carriers
Machined Aluminum Motor Mount
Machined Aluminum Shock Towers
Speed-Rated Belted Tires
Sealed Steel-Gear Differentials
Steel CV Driveshafts
Aluminum 17mm Splined Wheel Hub & Hex Nut
Extruded Aluminum Driveshaft
Shock-Absorbing Cush Drive
Heavy Duty Module 1 Gears
Rubber-Sealed Ball Bearings

*Unlock the 100+mph speed requires the Traxxas Link App. High-speed gearing and high downforce splitter (included) and two 3-cell 5000mAh Power Cell LiPo battery packs (part #2872X, sold separately) are required for 100+mph operation.

SPECIFICATIONS
Length: 27 inches (686mm)
Front Track: 11.81 inches (300mm)
Rear Track: 11.81 inches (300mm)
Ground Clearance: 0.59 inches (15mm)
Weight: 8.6lbs (3.9 kg) (w/o batteries)
Width (overall): 13.0 inches (329mm)
Height (overall): 5 inches (127.5mm)
Wheelbase: 15.9 inches (404mm)
Shock Length: 3.3in (83mm) Front, 3.4in (86mm) Rear
Front Tires (pre-glued): Belted slick 4.29in (109mm) x 1.7in (43mm)
Rear Tires (pre-glued): Belted slick 4.29in (109mm) x 2in (51mm)
Wheels (front & rear): 3.3in (84mm) Split-Spoke (black-chrome) with 17mm splined hex
Speed Control: Castle Mamba Monster Extreme forward/reverse/brake
Motor (electric): Traxxas Big Block Brushless (1650 kV)
Transmission: Single-speed with Cush Drive
Overall Drive Ratio: 9.36 (stock, out-of-box)
Differential Type: Sealed hardened steel bevel
Gear Pitch: Module 1.0
Chassis Structure/Material: 3mm plate, dual plane, 6061-T6 aluminum
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Dual-Bellcrank with steel arm
Radio System: TQi 2.4GHz Radio System with Traxxas Link Wireless Module
Receiver: TSM Receiver (#6533)
Servo: #2075 High Torque Waterproof
Top Speed: 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
Skill Level: 10
Battery Tray Dimensions: 155mm / 50mm / 29mm (adjustable height and length)

Required Batteries & Charger
Two Traxxas iD Power Cell LiPo Batteries (LiPo, 3-Cell 5000 mAh)
LiPo Battery Charger
4 (AA) Batteries (Transmitter)
