Traxxas TRX-4 1972 Chevrolet K5 Blazer 4WD RTR Rock Crawler Trail Truck

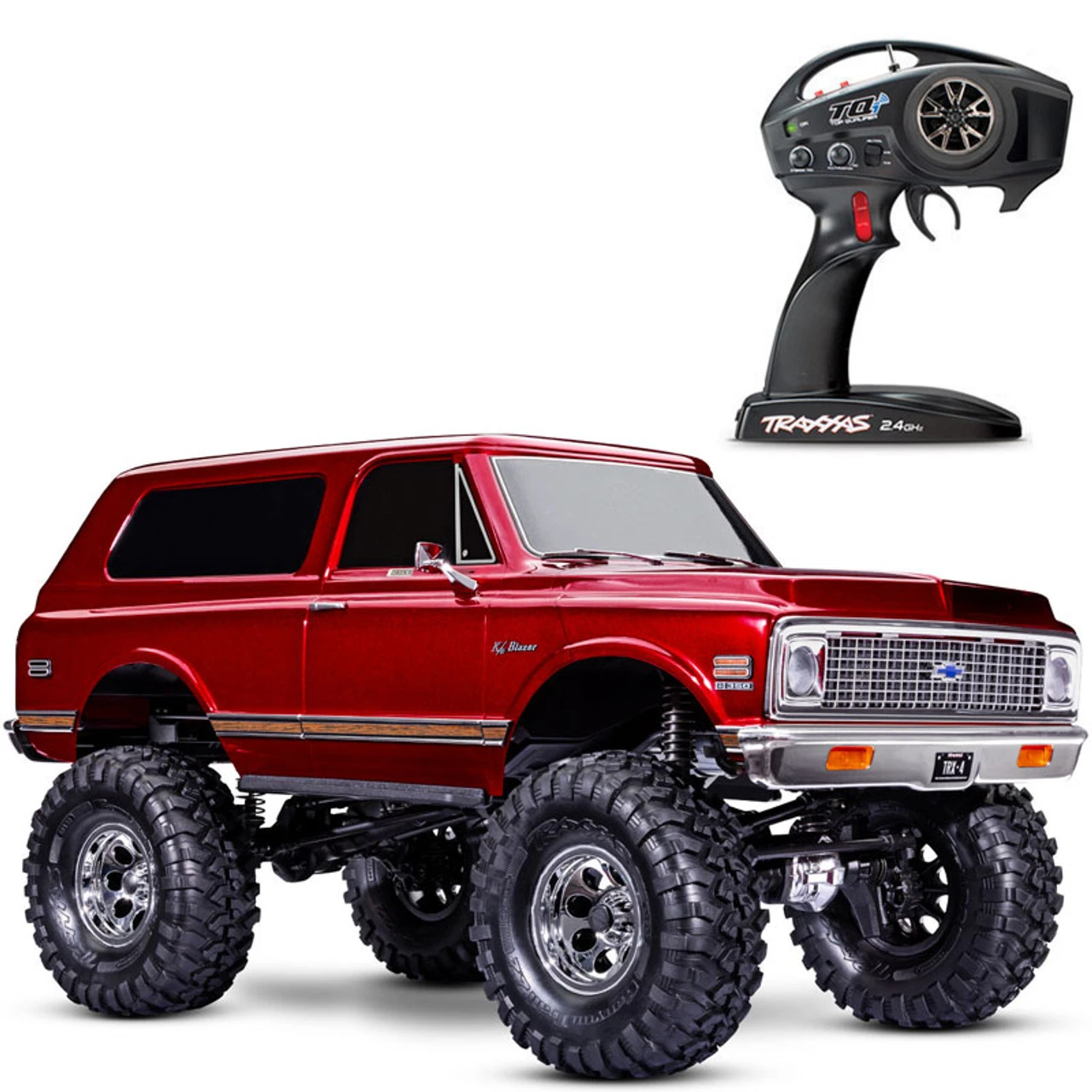

This is the Traxxas TRX-4 Scale and Trail Crawler with 1972 Chevrolet K5 Blazer body and Long Arm Lift Kit 1/10 Scale 4WD Electric Truck. Ready-to-Drive with TQi Traxxas Link Enabled 2.4GHz Radio System, XL-5 HV ESC (fwd/rev), and Titan 550 motor.

Requires: Battery and charger – see recommended items at bottom

K5 Blazer – High Trail Edition
SCALE AND TRAIL A Stunning Achievement in Scale Detail and Realism

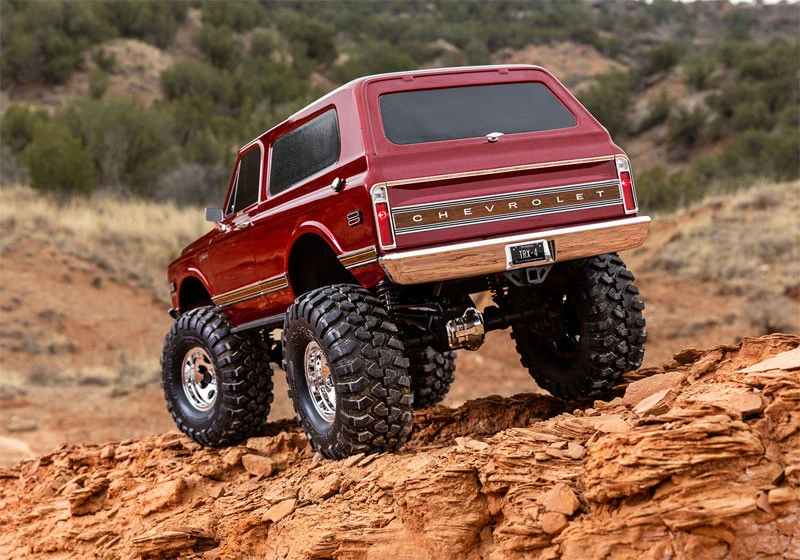

Traxxas High Trail Edition TRX-4 models are the biggest and baddest trucks on the trail and now classic Blazer fans have reason to celebrate. The 1972 Chevrolet K5 Blazer gets the full High Trail treatment with a big, lifted stance and beautifully detailed body. The factory-installed Long Arm Lift Kit boosts the Blazer’s ground clearance by more than an inch with larger 2.2″ wheels and tires to conquer the roughest terrain. K5 Blazer High Trail Edition delivers more of what you crave—extreme all-terrain capability, stunning scale looks, and Traxxas-Tough durability

HIGH TRAIL EDITION

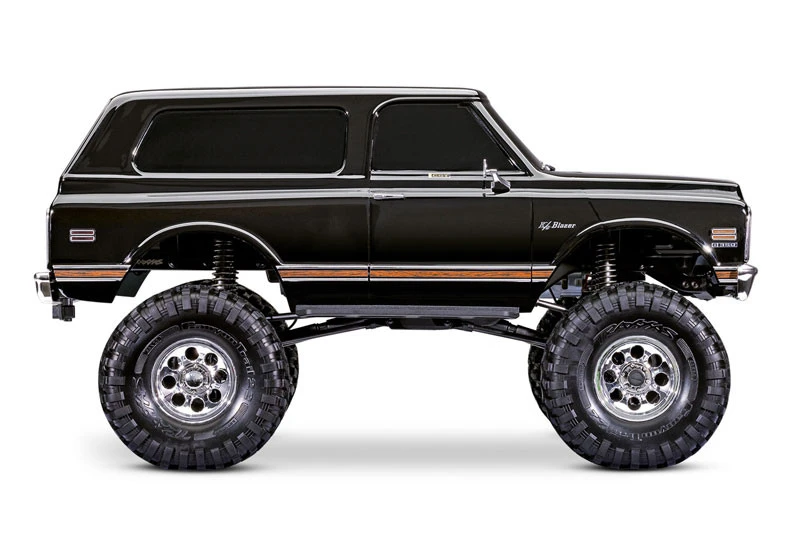

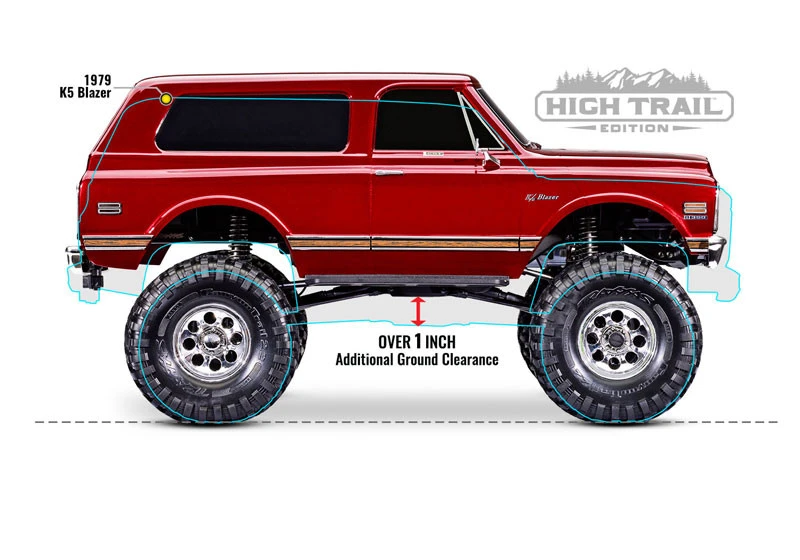

Large 2.2″ chrome mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before. The factory-installed Long Arm Lift Kit raises K5 Blazer over an inch taller for superior ground clearance.

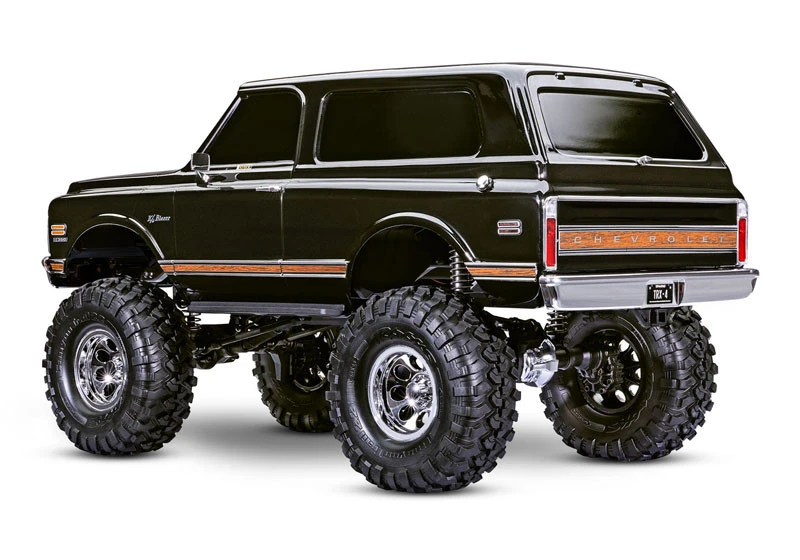

DETAILED REPLICA BODY

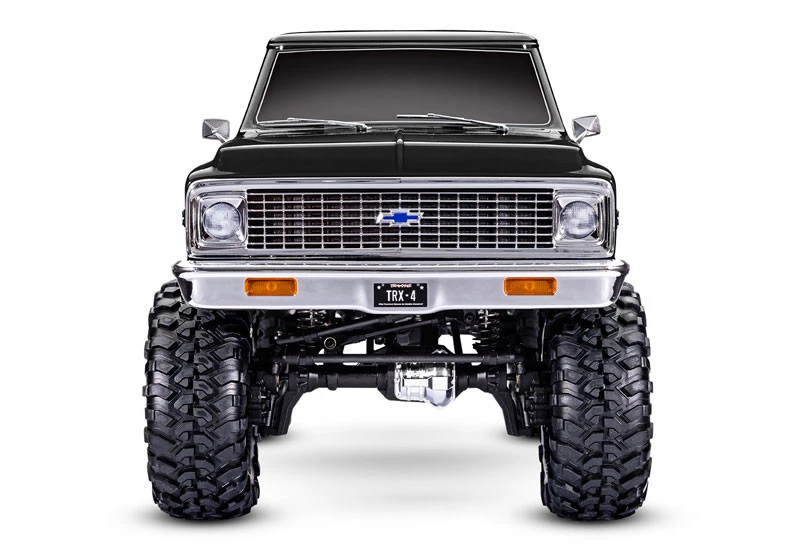

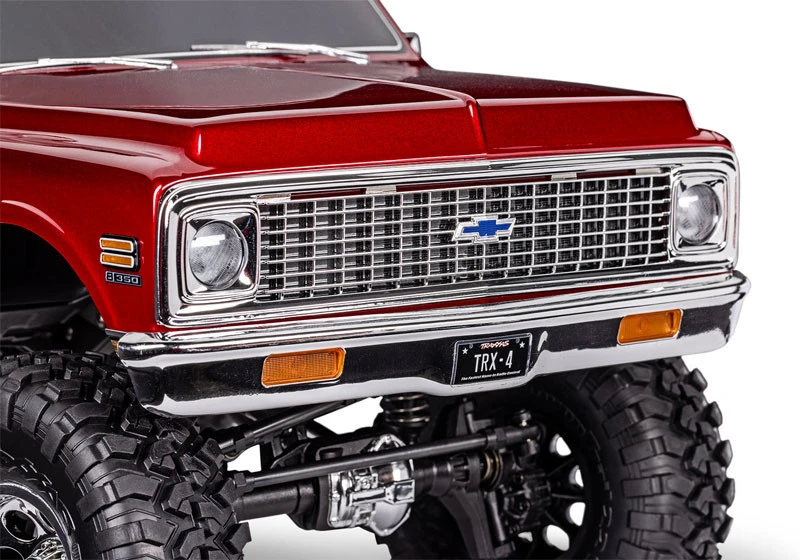

The TRX-4 K5 Blazer faithfully reproduces one of the most iconic Chevy trucks to ever hit the trail. Bright chrome accents contrast the high-gloss paint for an unmistakable look. The injection-molded grille, side mirrors, and simulated wood trim give K5 Blazer uncompromising scale presence.

CLIPLESS BODY MOUNTING
The clipless body’s hidden latching system gives K5 Blazer High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, K5 Blazer’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.

Features

• Officially Licensed 1979 Chevrolet K5 Blazer Body
  • Scale details: deep-inset front grille, chrome bumpers, side mirrors, door handles, side trim and wipers
  • LED-ready headlights, tail lights, and side markers
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
• Clipless Body mounting
  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
  • Body details mount directly to internal frame
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  • Two stage low voltage protection (LVD)
• Titan 550 Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Factory-Installed Long Arm Lift Kit
  • Increases ground clearance over 1″
  • Maintains precise steering geometry
  • Accommodates oversize 2.2″ wheels and tires
• TQi 2.4 GHz Radio System
  • 4-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box with easy-access plug
• Reinforced Steel Ladder Frame
  • Full-length 1.5 mm thick steel frame rails
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Extended Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Extra-long aluminum bodies for greater articulation
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Oversize Wheels and Tires
  • 2.2″ chrome mag wheels wheels with hub inserts
  • Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

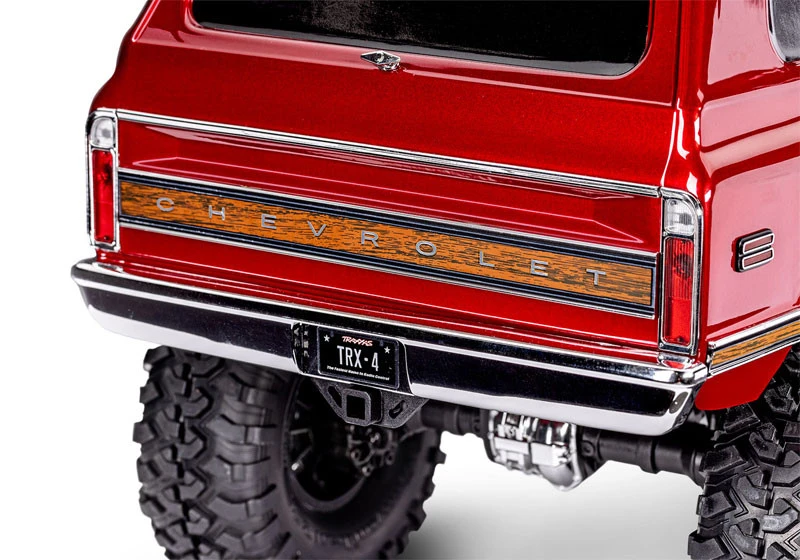

Molded Scale Details

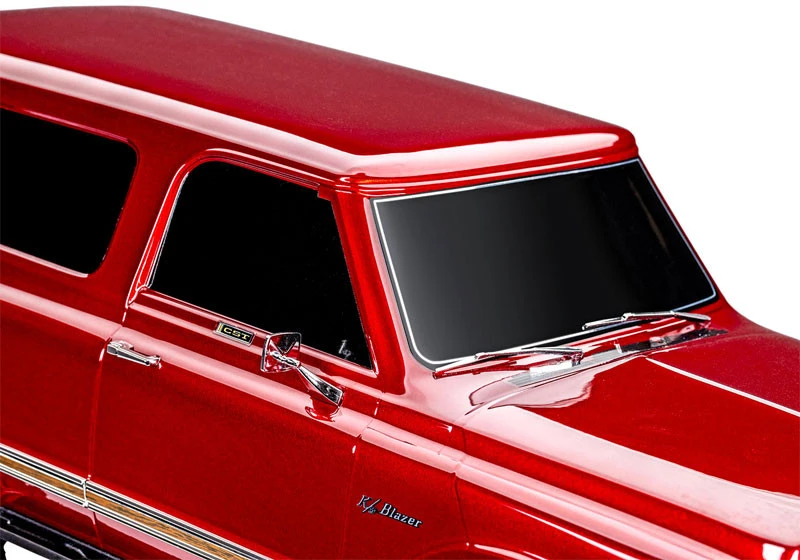

K5 Blazer High Trail Edition features beautiful precision-molded details for a whole new level of scale realism. Chrome mag wheels, side mirrors, windshield wipers, and top of the line Chevy Cheyenne wood trim provide the perfect scale touches.

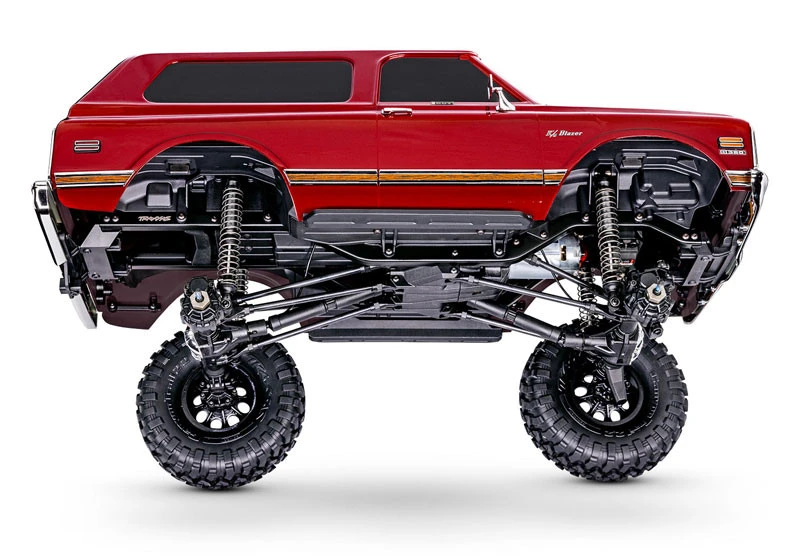

Factory-Installed Long Arm Lift Kit
The Traxxas Long Arm Lift Kit includes extended GTS aluminum shocks, longer links and rod ends, extended driveshafts and T-Lock cables, and a new servo mount. The lift kit works as one engineered system not only to raise the truck, but also to maintain TRX-4’s carefully tuned suspension geometry.

Clipless Convenience
k5 Blazer’s heavy-duty clipless body mounts integrate into its rugged inner fenders to form a vice-like grip. When it’s time to release the body, simply reach under the fender and pull the tabs. It’s that easy.

Heavy-Duty Frame Rails
A thick 1.5 mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

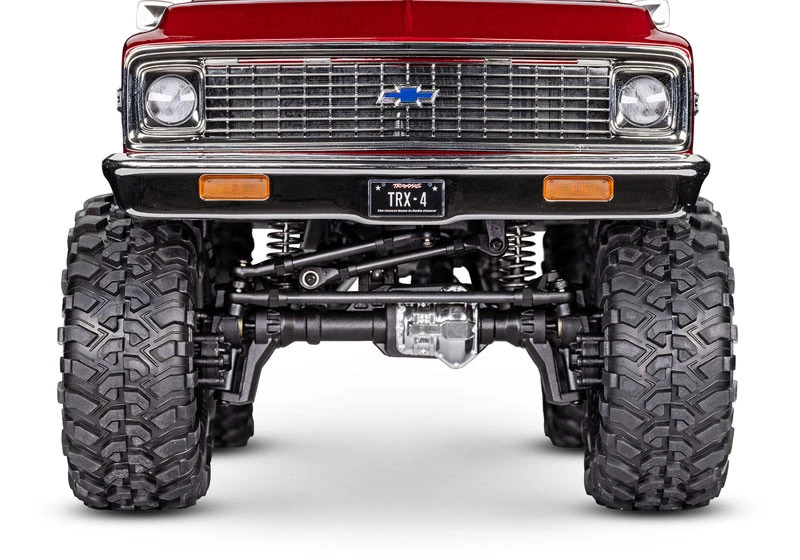

Chrome-Finish Differential Covers
Classic style meets modern technology underneath the K5 Blazer with realistic mirror chrome differential covers. These polished details take the scale look of the front and rear portal axles to the next level.

Raised Center Driveshafts and Suspension Links
TRX-4’s radical portal axle design raises the axle centerline higher to improve axle geometry and reduce driveshaft angles. Higher driveshafts and suspension links pass over obstacles to avoid high-centering your truck and reduce overall grinding wear.

High/Low Transmission
Why carry your crawler down the trail when you can drive? Blazer K5 High Trail Edition features a high speed gear to get you to your next crawling challenge quickly. When you get there, flip the rocker switch on your transmitter to engage low range and conquer tough terrain with exceptional torque.

Molded Inner Fenders and Floor Pans
Tough inner fenders mount directly to the frame and shock towers to provide realistic feel to Blazer K5 High Trail Edition. Molded floor pans integrate into the fenders to keep rocks, mud, and twigs out of the chassis.

2.2” Canyon Trail Tires
K5 Blazer rides on oversize Canyon Trail tires for additional ground clearance and rock-crawling performance. The ultra-soft S1-compound rubber and aggressive lug pattern, and dual-density foam inserts deliver unmatched grip and rugged climbing action.

Extended-Length 110mm GTS Shocks
Blazer’s extra-long 110 mm GTS coil-over shocks are oil-filled to smooth out even the roughest trails. These silver-anodized aluminum shocks deliver silky-smooth damping and feature threaded bodies for easy ride height adjustment. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

Torque Twist Eliminated
On conventional rigs with the limited gear reduction in the differentials, motor torque is applied to the frame to the point of twisting you right off the rocks. TRX-4’s portal axle design reduces the gear ratio at the wheels, virtually eliminating torque twist through the chassis.

T-Lock Remote Locking Differentials
Traxxas gives you complete control over the front and rear differentials to suit your driving needs. Leave the differentials unlocked for relaxed driving on the trail. When the trail gets technical, lock the front and rear differentials, or just the front differential, for superior pull and grip over extreme terrain. Sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.

Waterproof Metal Gear Servo
A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough challenges.

*Click to See the Full Line of TRX-4 Parts/Accessories

Specifications
Length: 20.67 inches (525 mm)
Front Track: 10.63 inches (27 0mm)
Rear Track: 10.63 inches (27 0mm)
Center Ground Clearance: 4 inches (99 mm)
Weight (w/o battery): 7.26 pounds (3.30 kg)
Height (overall): 11.22 inches (285 mm)
Wheelbase: 12.28 inches (312 mm)
Approach Angle: 69.2°
Departure Angle: 55.7°
Breakover Angle: 79.3°
Front Shock Length: 4.33 inches (110 mm)
Rear Shock Length: 4.33 inches (110 mm)
Front Wheels: 2.2″ x 1.34″ (56 x 34 mm)
Rear Wheels: 2.2″ x 1.34″ (56 x 34 mm)
Front Tires: 5.3″ x 2.14″ (135 x 54 mm)
Rear Tires: 5.3″ x 2.14″ inches (135 x 54 mm)
Hex Size: 12 mm
Speed Control: XL-5 HV
Motor (electric): 21T reverse rotation
Transmission: 2-speed high/low, remote shifting
Gear Pitch: 32 pitch
Differential Type: 4 gear, remote locking
Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft driven 4WD
Steering: Chassis mounted servo
Servo: 2075X metal gear
Transmitter: TQi 2.4 GHz 4-channel transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 159 L x 47 W x 23/26 mm H

Requires
(4) AA batteries for the transmitter
6-7-cell NiMH flat pack or 2-3S LiPo battery
Battery Charger
